Female Connector (BSPP)
Product code FGFC
Straight fitting connecting a tube to a male BSPP (G) end; the female port is of ISO 1179 type.
- Material
- AISI 316 / 316L
- Standard
- ISO 228-1 (BSPP)
- Connection system
- Double ferrule
- Tube sizes
- Metric 3–22 mm · Inch 1/8″–1/2″
- Material and standard are confirmed in writing in the quote
- Reply with stock status and lead time
Description
About the product
This product is supplied for tube ODs of metric 3–22 mm and inch 1/8″–1/2″; the code and dimensions of each size are given in the dimension table below.
How to read the product code
In the code the tube OD is given in sixteenths of an inch (08 = 1/2″), metric tubes in mm with the letter M (6M = 6 mm); thread letter N: NPT, R: BSPT, B: BSPP, S: SAE (UN).
Dimensions are for reference. When requesting a quote, simply state the product code or the tube OD (and the thread size for threaded connections).
Dimensions
Size chart
Sizes are in mm and weights in kg/piece. Just enter the size you need in the quote form.
Metric

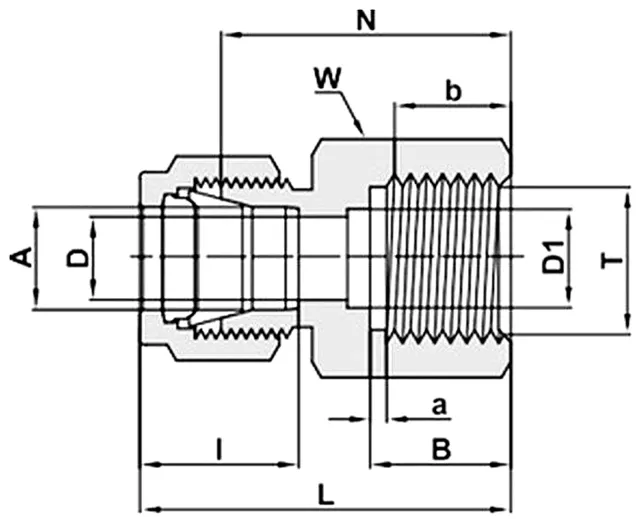

| Code | A Tube OD, mm | T Thread size | D Bore (min.), mm | D1 Port bore behind thread, mm | W Hex across flats, mm | B Port depth, mm | b Full thread length (min.), mm | a Thread run-out (min.), mm | L Overall length, mm | N Body length, mm | I Tube insertion depth, mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FGFC-3MB-04 | 3 | G 1/4 | 2.4 | 5.5 | 19 | 13 | 9.5 | 1.6 | 35.3 | 28.7 | 12.9 |
| FGFC-6MB-02 | 6 | G 1/8 | 4 | 4 | 14 | 10 | 7 | 1.6 | 32.4 | 25 | 15.3 |
| FGFC-6MB-04 | 6 | G 1/4 | 4.8 | 5.5 | 19 | 13 | 9.5 | 1.6 | 37.6 | 30.2 | 15.3 |
| FGFC-6MB-06 | 6 | G 3/8 | 4.8 | 6.5 | 24 | 14.1 | 10 | 1.6 | 37.6 | 30.2 | 15.3 |
| FGFC-6MB-08 | 6 | G 1/2 | 4.8 | 7 | 27 | 19 | 15 | 1.6 | 43.5 | 36.1 | 15.3 |
| FGFC-8MB-04 | 8 | G 1/4 | 5.5 | 5.5 | 19 | 13 | 9.5 | 1.6 | 38.5 | 31 | 16.2 |
| FGFC-8MB-06 | 8 | G 3/8 | 6.4 | 6.4 | 24 | 14.1 | 10 | 1.6 | 36.2 | 28.7 | 16.2 |
| FGFC-8MB-08 | 8 | G 1/2 | 7 | 7 | 27 | 19 | 15 | 1.6 | 41 | 33.5 | 16.2 |
| FGFC-10MB-04 | 10 | G 1/4 | 5.5 | 5.5 | 19 | 13 | 9.5 | 1.6 | 39.4 | 31.8 | 17.2 |
| FGFC-10MB-06 | 10 | G 3/8 | 6.5 | 6.5 | 24 | 14.1 | 10 | 1.6 | 38.8 | 31.2 | 17.2 |
| FGFC-10MB-08 | 10 | G 1/2 | 7 | 7 | 27 | 19 | 15 | 1.6 | 42.1 | 34.5 | 17.2 |
| FGFC-12MB-04 | 12 | G 1/4 | 5.5 | 5.5 | 22 | 13 | 9.5 | 1.6 | 41.9 | 31.8 | 22.8 |
| FGFC-12MB-06 | 12 | G 3/8 | 6.5 | 6.5 | 24 | 14.1 | 10 | 1.6 | 44.4 | 34.3 | 22.8 |
| FGFC-12MB-08 | 12 | G 1/2 | 7 | 7 | 27 | 19 | 15 | 1.6 | 48.2 | 38.1 | 22.8 |
| FGFC-20MB-08 | 20 | G 1/2 | 7 | 7 | 30 | 19 | 15 | 1.6 | 54.3 | 44.2 | 26 |
| FGFC-22MB-08 | 22 | G 1/2 | 7 | 7 | 30 | 19 | 15 | 1.6 | 54.3 | 44.2 | 26 |
Inch
| Code | A Tube OD, inch | T Thread size | D Bore (min.), mm | D1 Port bore behind thread, mm | W Hex across flats, inch | B Port depth, mm | b Full thread length (min.), mm | a Thread run-out (min.), mm | L Overall length, mm | N Body length, mm | I Tube insertion depth, mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FGFC-02B-04 | 1/8″ | G 1/4 | 2.3 | 5.5 | 3/4″ | 13 | 9.5 | 1.6 | 35.3 | 28.7 | 12.7 |
| FGFC-04B-02 | 1/4″ | G 1/8 | 4 | 4 | 9/16″ | 10 | 7 | 1.6 | 32.4 | 25 | 15.2 |
| FGFC-04B-04 | 1/4″ | G 1/4 | 4.8 | 5.5 | 3/4″ | 13 | 9.5 | 1.6 | 37.6 | 30.2 | 15.2 |
| FGFC-04B-06 | 1/4″ | G 3/8 | 4.8 | 6.5 | 15/16″ | 14.1 | 10 | 1.6 | 37.6 | 30.2 | 15.2 |
| FGFC-04B-08 | 1/4″ | G 1/2 | 4.8 | 7 | 1 1/16″ | 19 | 15 | 1.6 | 43.4 | 36.1 | 15.2 |
| FGFC-05B-04 | 5/16″ | G 1/4 | 5.5 | 5.5 | 3/4″ | 13 | 9.5 | 1.6 | 38.4 | 31 | 16.2 |
| FGFC-05B-08 | 5/16″ | G 1/2 | 7 | 7 | 1 1/16″ | 19 | 15 | 1.6 | 40.9 | 33.5 | 16.2 |
| FGFC-06B-04 | 3/8″ | G 1/4 | 5.5 | 5.5 | 3/4″ | 13 | 9.5 | 1.6 | 39.1 | 31.8 | 16.8 |
| FGFC-06B-06 | 3/8″ | G 3/8 | 6.6 | 6.6 | 15/16″ | 14.1 | 10 | 1.6 | 38.6 | 31.2 | 16.8 |
| FGFC-06B-08 | 3/8″ | G 1/2 | 7 | 7 | 1 1/16″ | 19 | 15 | 1.6 | 41.9 | 34.5 | 16.8 |
| FGFC-08B-06 | 1/2″ | G 3/8 | 6.5 | 6.5 | 15/16″ | 14.1 | 10 | 1.6 | 44.5 | 34.3 | 22.9 |
| FGFC-08B-08 | 1/2″ | G 1/2 | 7 | 7 | 1 1/16″ | 19 | 15 | 1.6 | 48.2 | 38.1 | 22.9 |
Dimensions in mm (except where inch is stated). D is the minimum bore. Dimensions are for reference.
