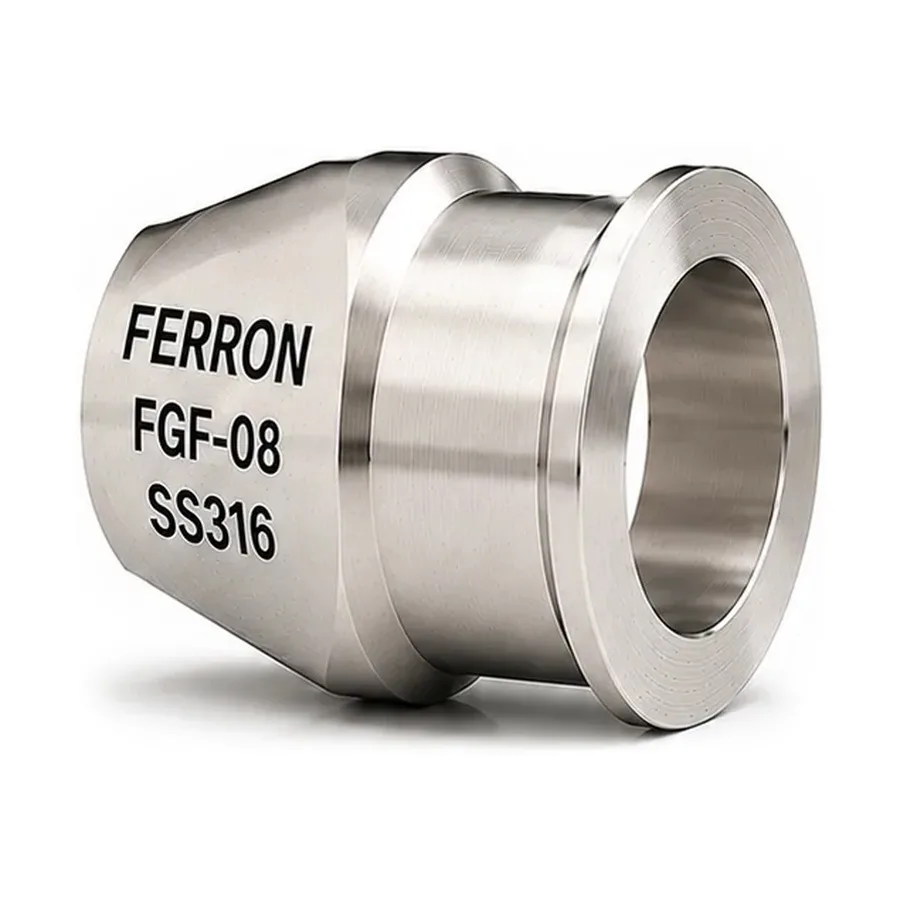

Front Ferrule
Product code FGF
Front ring of the double-ferrule system; when the nut is tightened it seats in the conical bore of the body and seals between tube and body. Used with a back ferrule and nut of the same size.
- Material
- AISI 316 / 316L
- Connection system
- Double ferrule
- Tube sizes
- Metric 2–50 mm · Inch 1/16″–2″
- Material and standard are confirmed in writing in the quote
- Reply with stock status and lead time
Description
About the product
This product is supplied for tube ODs of metric 2–50 mm and inch 1/16″–2″; the code and dimensions of each size are given in the dimension table below.
How to read the product code
In the code the tube OD is given in sixteenths of an inch (08 = 1/2″), metric tubes in mm with the letter M (6M = 6 mm); thread letter N: NPT, R: BSPT, B: BSPP, S: SAE (UN).
Dimensions are for reference. When requesting a quote, simply state the product code or the tube OD (and the thread size for threaded connections).
Dimensions
Size chart

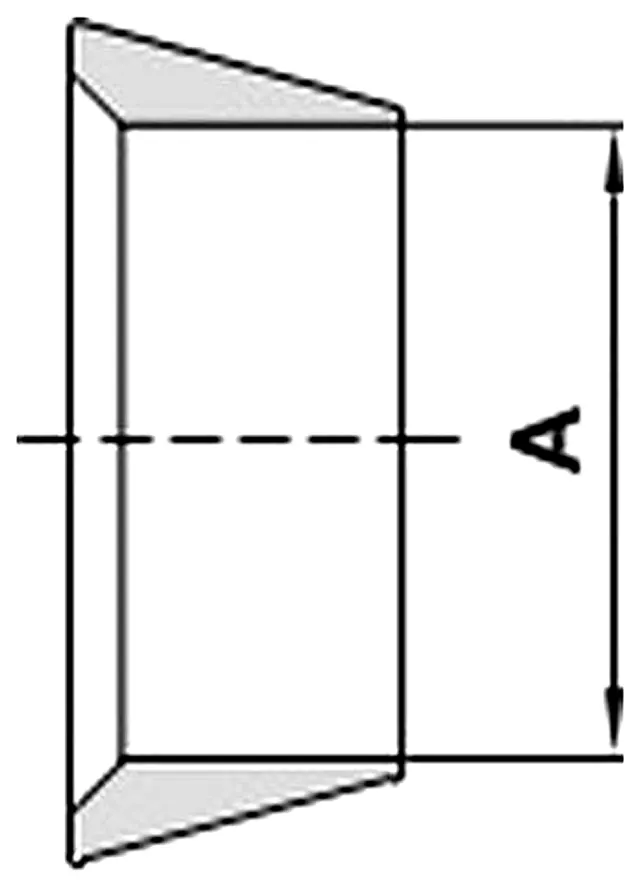

Sizes are in mm and weights in kg/piece. Just enter the size you need in the quote form.
